Laminar Flow Cabinet Series HS Standard Clean Bench Horizontal Air Supply

Model No. : B-HS
Products Category: > Laminar flow cabinet(clean bench)

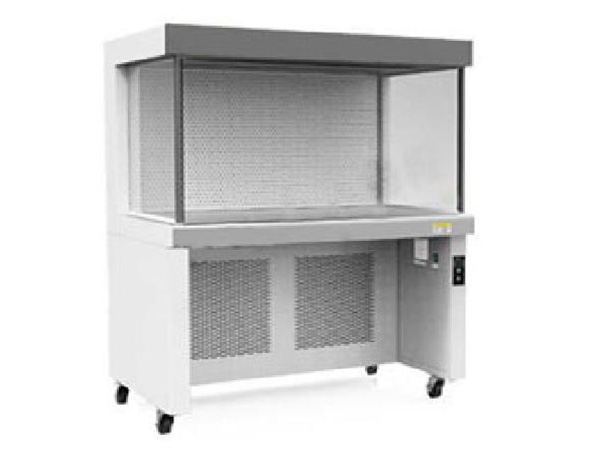

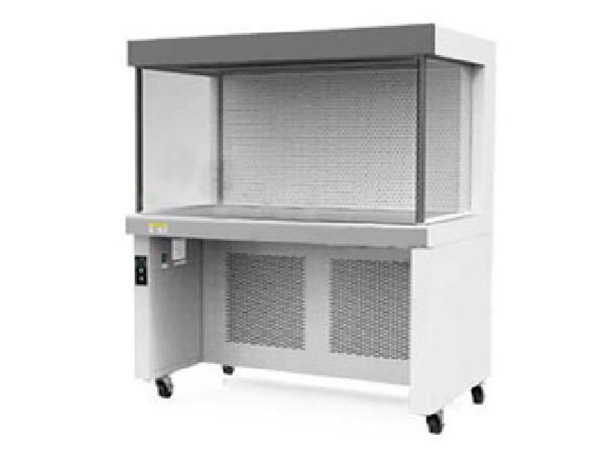

Laminar Flow Cabinet Series HS Standard Clean Bench Horizontal Air Supply
Compact front air inlet and large open area uniform air supply.
●It adopts color largescreen LCD display with soft key button operation to realize performance indexes such as air velocity and provide fault alarm.
●The frontend curved arc design is ergonomically designed for comfortable operation and reduced fatigue. .Interlocking function of lighting and sterilization system,operator can make an appointment for UV light

Model	HS-840	HS-1300	HS-840-U	HS-1300-U
Cleanliness	ISO CLAS85
Air Velocity	0.33m/s±0.03m/s(adjustable)
Noise	≤62 dB(A)
illumination	sa00L
Power Supply	AC220V.1φ,50Hz
Consumption源	250w	500w	250 w	500 w
Weight	125kg	170 kg	125kg	170k
Work Dimension W1XD1XH1)	720×650x570 mm (28.37x25.6"x22.4")	1180×650x570 mm 46.5'x25.6"x22.47)	720x650x570 mm (28.3"x25.6"x22.4)	1180×650x570 mm (46.5"x25.6"x22.4")
Overall Dimension (WXDXH)	840x825x1435mm 33.1"x32.5"x56.5")	1300x825×1435mm 51.2"x32.5°x56.5")	840x825x1435mm (33.1"x32.5"x56.5°)	1300x825×1435mm (51.2"x32.5"x56.5")
Size&No.of HEPA Filter	760×610x50mmx1set 29.9"x24.0°x2.0"x1set)	610x610x50mmx2sets (24.0"x24.0"x2.0"x2sets)	760x610x50mm x 1set (29.9"x24.0"x2.0"x1set)	610x610x50mmx2sets (24.0"x24.0"x2.0~x2sats)
Light	LED7wx1pc	LED 10wx1pc	LED7wx 1pc	LED 10wx 1pc
UV Light			18wx1pc	30wx1pc
No.of Colony	1		60.5cfu/dish-0.5h
Materials	Working table:All-in-one Stainless Steel,Out side cabinet:high grade steel and lacquered in ivory.
Mode of Operation	single people/single side	double people/single side	single people/single side	double people/single side
